Single Acting Pneumatic Actuator(SPRING -RETURN )BACK TO LIST

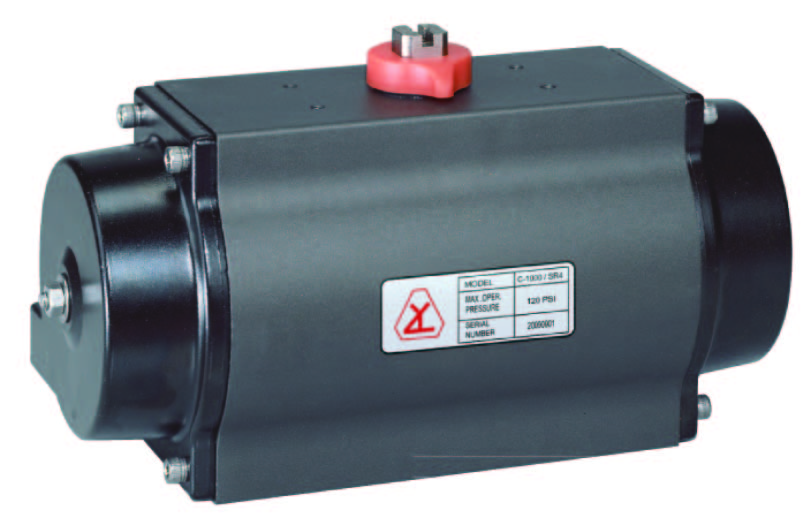

- SINGLE ACTING PNEUMATIC ACTUATOR (SPRING -RETURN )
- OPERATING PRESSURE RANGE: 40 TO 120 PSIG
- MAXIMUM ALLOWABLE WORKING PRESSURE: 150 PSIG
- MAXIMUM OPERATING PRESSURE : 120 PSIG OPERATING
- MEDIA: DRY OR LUBRICATED NON-CORROSIVE GAS OPERATNG
- TEMPERATURE STANDARD: -40 degree F ~ +200 degree F
- SINGLE ACTING PNEUMATIC ACTUATOR (SPRING -RETURN )
- OPERATING PRESSURE RANGE: 40 TO 120 PSIG
- MAXIMUM ALLOWABLE WORKING PRESSURE: 150 PSIG
- MAXIMUM OPERATING PRESSURE : 120 PSIG
- OPERATING MEDIA: DRY OR LUBRICATED NON-CORROSIVE GAS
- OPERATNG TEMPERATURE STANDARD: -40 degree F ~ +200 degree F
DESIGN AND CONSTRCTION
- BODY: EXTRUDED ALUMINUM ALLOY
- PISTONS: DIE CAST ALUMINUM LLOY
- BEARING :NYLON
- O-RING:BUNA-N
- END CAP: DIE CAST ALUMINUM ALLOY
- WASHER & CAP SCREW : STAINLESS STEEL
- STOP CAM: SINTERAL STEEL
- PISTON INDICATOR:POLYETHYLENE
- RETAINING ING:STAINLESS STEEL
- PINION:CARBON STEEL
- NUT:STAINLESS STEEL
The pneumatic actuator could be assembly with valve , and allow it to move the valves moving parts to control the material flowing inside.
PRODUCT WEIGHT
TYPE |
Double Acting |
Single Acting 2 |
Single Acting 3 |
Single Acting 4 |
Single Acting 5 |
Single Acting 6 |
C125 |
1 |
|
|
|
|
|
C250 |
1.6 |
1.9 |
1.9 |
1.9 |
2 |
2 |
C450 |
2.2 |
2.9 |
2.9 |
3 |
3.1 |
3.2 |
C1000 |
3.7 |
4.9 |
5.2 |
5.3 |
5.4 |
5.5 |
C2250 |
7.6 |
9.5 |
10.1 |
10.4 |
10.6 |
10.9 |
C3650 |
15 |
17.1 |
17.8 |
18.2 |
18.7 |
19.2 |
C5000 |
19.6 |
24.4 |
25.5 |
26.1 |
27. |
27.8 |
C11000 |
39.8 |
47.3 |
50 |
51 |
53.2 |
54.8 |
